The LMX1622-12-xx is a direct drive CCFL (Cold Cathode Fluorescent Lamp) Inverter Module from Microsemi that is specifically designed for driving two lamp LCD displays. The module has a wide range of display brightness and can be used with virtually any LCD display.

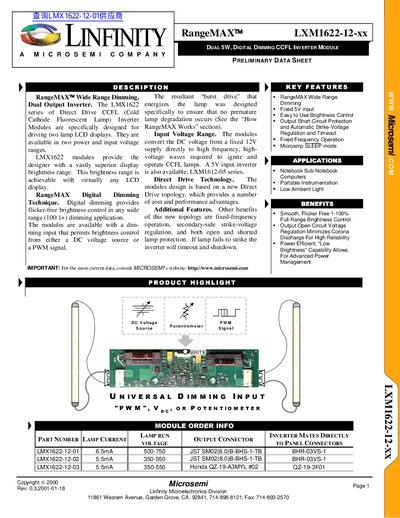

The document describes the RangeMAX™ LMX1622-12-xx series of Direct Drive Cold Cathode Fluorescent Lamp (CCFL) Inverter Modules. These modules are specifically designed for driving two lamp LCD displays and feature a wide range dimming capability with flicker-free brightness control.
| Input Supply Voltage (Vin) | 10.8V to 13.2V |
|---|---|
| Output Power (-01) | 5.8W to 10.8W |
| Operating Frequency (Fo) | 66 kHz to 86 kHz |
The recommended operating input supply voltage (Vin) ranges from 10.8V to 13.2V.
The modules use a digital dimming technique with burst drive to ensure flicker-free brightness control in any wide range.
