The document describes the features and characteristics of the SN7002W SIPMOS small-signal transistor, including N-channel, enhancement mode, logic level, and dv/dt rating. It also provides maximum ratings and thermal characteristics.

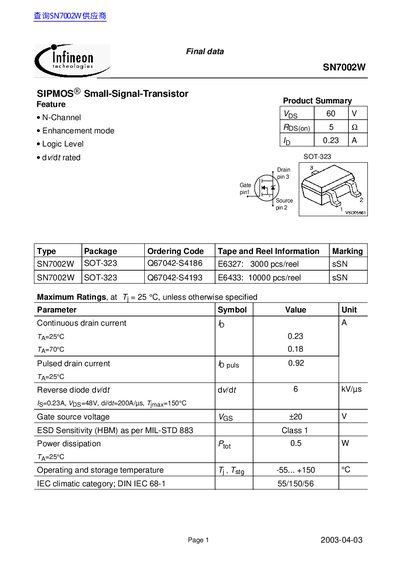

The document is a final data sheet for the SN7002W, an N-channel enhancement mode SIPMOS small-signal transistor. It details the device's features, including a 60V drain-source breakdown voltage and logic-level operation with a threshold voltage between 0.8V and 1.8V. The part is housed in a SOT-323 package and is rated for continuous drain currents up to 0.23A at 25°C.
The maximum continuous drain current is 0.23 A when the ambient temperature is 25°C.
The maximum power dissipation is rated at 0.5 W.
The minimum drain-source breakdown voltage is 60 V.
