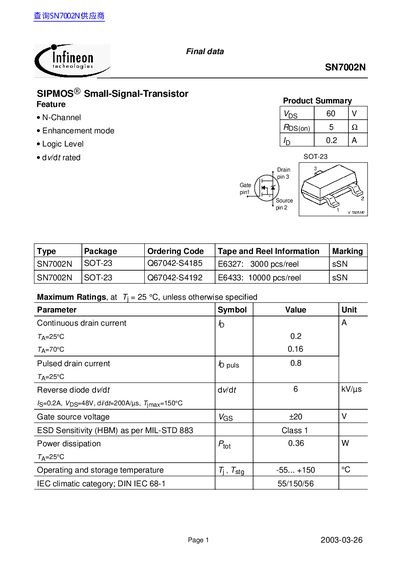

SN7002N is a SIPMOS small-signal transistor with N-channel, enhancement mode, logic level, dv/dt rated, SOT-23 package.
This document is a final data datasheet for the Infineon SN7002N, a SIPMOS (Silicon Insulated Gate Bipolar Transistor) small-signal transistor. The device is an N-channel enhancement mode MOSFET designed with logic level drive capabilities and is rated for dv/dt applications.
The datasheet provides comprehensive technical specifications including maximum ratings, thermal characteristics, and detailed electrical parameters. Key features include a drain-source breakdown voltage of 60V, a continuous drain current of 0.2A at 25°C, and a power dissipation of 0.36W. The document also details dynamic characteristics such as transconductance, capacitances, and gate charge, along with typical output and transfer characteristics graphs.
The maximum continuous drain current is 0.2 A when the ambient temperature is 25 °C.
