M54/74HCT240, HCT241 and HCT244 are high speed CMOS OCTAL BUS BUFFERs fabricated in silicon gate C2MOS technology.

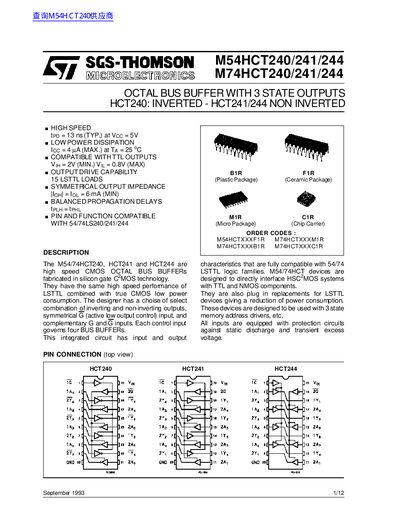

This document is a datasheet for the M54HCT240, M54HCT241, and M54HCT244 integrated circuits manufactured by SGS-THOMSON Microelectronics. These devices are high-speed CMOS octal bus buffers fabricated in silicon gate CMOS technology, designed to combine the high-speed performance of LSTTL with true CMOS low power consumption.
| Propagation Delay (Typical) | 13 ns |
|---|---|
| Output Leakage Current (Max) | 4 pA |
| Output Drive Capability | 15 LSTTL Loads |
| Supply Voltage Range | 4.5 to 5.5 V |
| Operating Temperature (M54HC Series) | -55 to +125 °C |
| Power Dissipation | 500 mW |
They are high speed CMOS octal bus buffers fabricated in silicon gate CMOS technology.
The output drive capability is 15 LSTTL loads.
