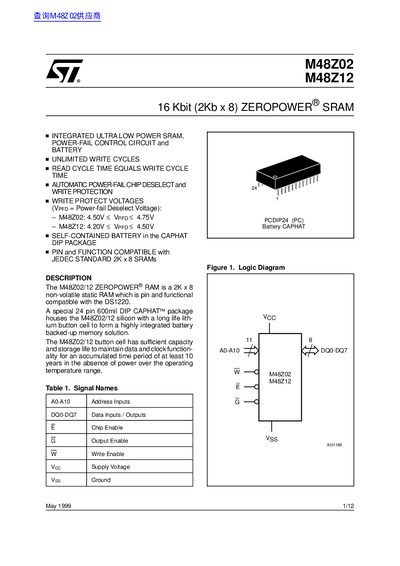

M48Z02 M48Z12 is a 16 Kbit (2Kb x 8) ZEROPOWER® SRAM with automatic power-fail control and write protection. It has unlimited write cycles and equal read and write cycle times. The M48Z02 has a power-fail deselect voltage range of 4.50V to 4.75V, while the M48Z12 has a range of 4.20V to 4.50V. It is housed in a CAPHAT DIP package with a self-contained battery.
The M48Z02/12 ZEROPOWER® RAM is a non-volatile static RAM that is pin and functionally compatible with JEDEC standard 2K x 8 SRAMs. It integrates a long-life lithium button cell within the CAPHAT DIP package to maintain data retention for at least 10 years without power.
| Memory Capacity | 16 Kbit (2K x 8) |
|---|---|
| Data Retention Time | 10 years |
| Operating Temperature Range | -40 to +85 °C |
| Package Type | 24 pin Plastic DIP CAPHAT |
The device maintains data and clock functionality for at least 10 years in the absence of power.
The write protect voltage (Vprp) ranges from 4.50V to 4.75V.
