The Yamaha NS-10MT is a 2-way bass-reflex speaker system with features including maximum input power limitation, distortion prevention, sun and humidity protection, and easy cleaning.

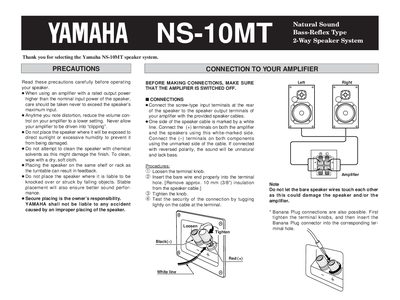

This document is the user manual for the Yamaha NS-10MT, a 2-way bass-reflex speaker system. It details safety precautions, including warnings about amplifier clipping and proper placement to avoid feedback or damage. The guide explains how to connect the speaker to an amplifier using the provided cables, emphasizing correct polarity for natural sound reproduction.
| Speaker Unit | 18 cm cone woofer x 1, 3m dome tweeter x 1 |
|---|---|
| Type | 2 way bass-reflex speaker system |
| Magnetic Shielding | Magnetic-shielding type |
| Dimensions | 215 x 382 x 255 mm |
| Weight | 7 kg (15 lbs. 7 02.) |
Connect the side marked by a white line to the (+) terminals and the unmarked side to the (-) terminals.
Placing the speaker on the same shelf or rack as the turntable can result in feedback.
Yes, the front cover is fastened at four points and can be removed by holding both sides and pulling straight away.
