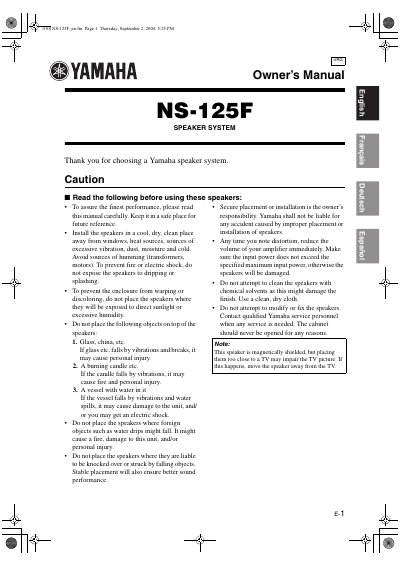

This manual is the user manual for the Yamaha NS-125F speaker system. It mainly introduces how to use, install, and pay attention to the speaker.
This manual provides safety precautions and installation guidelines for the Yamaha NS-125F speaker system. It advises on proper placement to prevent tipping and damage, and details how to connect the speakers to an amplifier using speaker cables or banana plugs. The document includes instructions for removing the front cover for access to the drive units.
| Type | 2-way bass-reflex speaker system |
|---|---|
| Shielding | magnetic shielding type |
| Tweeter | 2.2 cm (7/8 ") balanced dome tweeter |
| Woofer | 8 cm (3.1) cone woofer x2 |
| Maximum input power | 120 W |
| Sensitivity | 86 dB/2.83 V/m |
| Crossover frequency | 6 kHz |
| Dimensions (with the stand) | 236 (9.3 ") X 1050 (41.3 ") X 236 (9.3") mm |
| Weight | 7.2kg (15.9 Ibs) |
It is a 2-way bass-reflex speaker system.
The maximum input power is 120 W.
Angle the speakers inward so as to create a triangle, with the listener at the apex.
