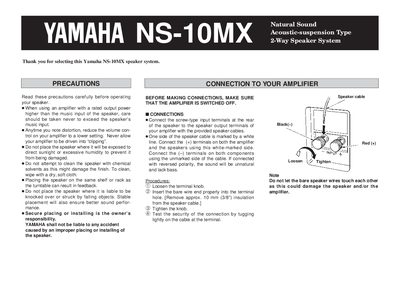

This is a user manual for Yamaha NS-10MX speaker system.
This document is the user manual for the Yamaha NS-10MX, a 2-way acoustic-suspension speaker system. It covers essential precautions regarding amplifier connection and placement to ensure optimal sound quality and prevent damage. The guide details how to connect speaker cables correctly to the rear terminals, emphasizing polarity matching to avoid unnatural sound and lack of bass. It also warns against placing the speaker near turntables to avoid feedback and advises against exposing the unit to direct sunlight or excessive humidity.
| Type | 2 way Acoustic-suspension type |
|---|---|
| Magnetic Shielding | Magnetic-shielding type (EIAJ) |
| Speaker Unit | 18 cm cone woofer x 1 |
| Tweeter | 3.5 cm dome tweeter x 1 |
| Crossover Frequency | 2 kHz, 12 dB/oct. |
| Dimensions | 215 x 382 x 199 mm |
| Weight | 7 kg |
Connect the white-marked side of the cable to the (+) terminals and the unmarked side to the (-) terminals on both the amplifier and speakers.
Placing the speaker on the same shelf or rack as the turntable can result in feedback.
