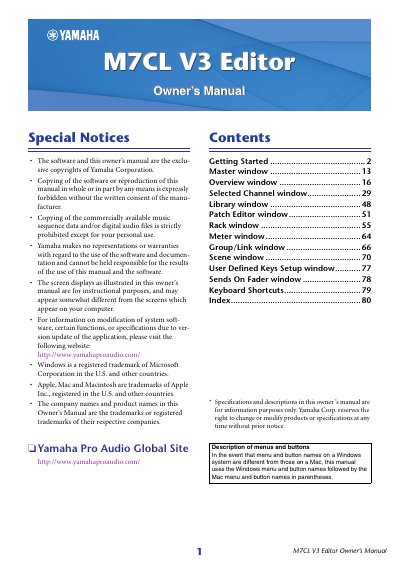

M7CL V3 Editor Owner’s Manual, introduces the product's usage methods and functional characteristics.
The M7CL V3 Editor is a computer application designed to enable remote control of Yamaha M7CL mixing console units, including models such as the M7CL-48ES, M7CL-48, and M7CL-32. It allows users to save parameter settings on their computer and synchronize them with the physical console.
To begin using the software, users must first configure Studio Manager and then set up the Editor within it. Key configuration steps include selecting input and output ports for communication, choosing the specific M7CL model being used, and enabling synchronization features like Fast Sync. The manual also details how to create user keys with specific permissions for different operators.
The software enables remote control of Yamaha M7CL mixing consoles, specifically the M7CL-48ES, M7CL-48, and M7CL-32 models.
Users must first start and configure Studio Manager, then start and configure the M7CL Editor, and finally synchronize the Editor with the console.
If the password is not entered correctly, it will not be possible to synchronize from the M7CL Editor to the M7CL console.
