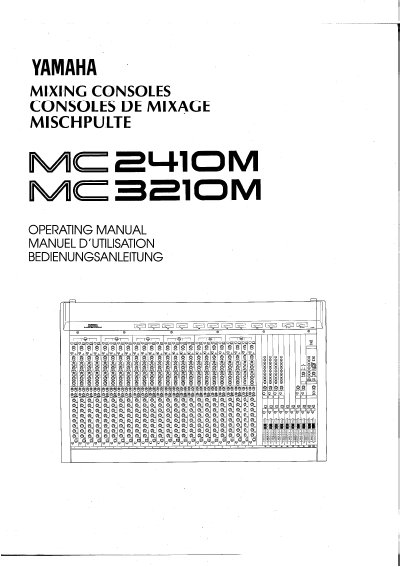

Yamaha MC2410M/MC3210M Mixing Console Operating Manual

About this manual

This manual provides instructions for the Yamaha MC2410M and MC3210M mixing consoles, which are designed for versatile stage monitoring. It covers the introduction, installation procedures, and operating tips to help users familiarize themselves with the unit's capabilities.

What's inside

• Introduction
• Installation
• Front Panel Operation
• Rear Panel Connections
• System Examples
• Specifications
• Block Diagram
• Level Diagram
• Dimensions

Frequently asked questions

What is the primary purpose of the Yamaha MC2410M/MC3210M mixing console?

The consoles are designed to provide flexible, efficient stage monitoring for performing musicians.

How many different monitor mixes can be created using the console's busses?

The consoles offer ten different monitor mixes via ten busses controlled by compact rotary controls.

What voltage is applied to the XLR-type input channel connectors when phantom power is turned on?

Turning the switch on applies 48 V DC across pins 2 & 3 of the XLR-type input channel connectors.

What frequency and roll-off rate does the HPF switch insert into the input channel?

Depressing this switch inserts an HPF in the input channel with a 12 dB/octave roll-off at 80 Hz.
