MS300 is a driver type double amplifier speaker system developed by Yamaha’s wealth of experience and knowledge of PA devices. It reproduces a wide sound range with high fidelity.

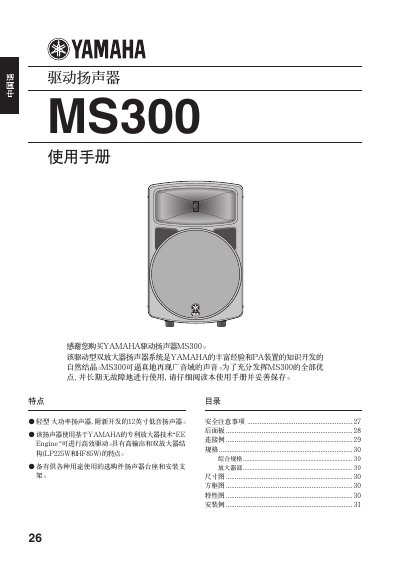

This document is the user manual for the Yamaha MS300, a powered speaker system featuring a dual-amplifier structure with a 12-inch woofer and a titanium compression driver. It is designed to reproduce a wide frequency range and includes features like an internal low-frequency cutoff filter for microphone inputs and an equalizer for low and high frequencies.
The manual covers essential safety precautions, such as proper power connection, handling of the heavy unit, and ventilation requirements. It details the rear panel connectors including line inputs/outputs, microphone inputs, and power connections. Additionally, it provides installation guidelines for speaker stands and ceiling suspension, along with a comprehensive list of technical specifications. This manual is written in Chinese.
| Speaker Components | LF: 30cm cone, HF: 5cm titanium diaphragm compression driver |
|---|---|
| Frequency Response | 50Hz~16kHz (-10dB) |
| Rated Max Power Output (LF) | 225W (at 500Hz THD 1%, RL=4Ω) |
| Rated Max Power Output (HF) | 85W (at 1.6kHz THD 1%, RL=16Ω) |
| Crossover Frequency | 1.6kHz (30dB/oct) |
| Power Consumption | 100W |
The frequency response is from 50Hz to 16kHz at -10dB.
The crossover frequency is set at 1.6kHz with a slope of 30dB/octave.
