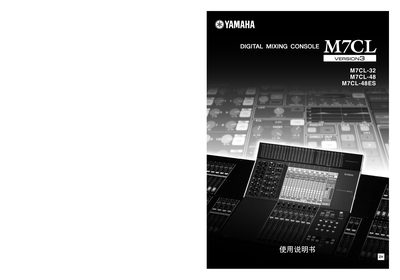

Yamaha M7CL-32/48/48ES Digital Mixing Console User Manual

About this manual

This manual covers the Yamaha M7CL series of digital mixing consoles, specifically the M7CL-32, M7CL-48, and M7CL-48ES models. It serves as a comprehensive guide for users to operate these devices effectively in various audio production environments.

The document details the setup process, including stage box connections and system initialization. It also explains the operation of the Centralogic interface, channel management, and various mixing functions such as EQ, dynamics, and routing.

What's inside

• FCC Information
• Stage Box Setup
• Centralogic Overview
• Selected Channel View
• Input/Output Configuration
• Equalization (EQ)
• Dynamics Processing
• MIDI Implementation
• Metering
• System Maintenance

Frequently asked questions

What is the maximum inrush current for European models of this console?

The inrush current for European models is 21 A.

Which environmental classes does this digital mixing console conform to?

This equipment conforms to environments E1, E2, E3, and E4.

What steps should be taken if the console causes radio or TV interference?

You should relocate or reorient the antenna, and if using a 300 ohm ribbon lead, change it to co-axial type cable.
