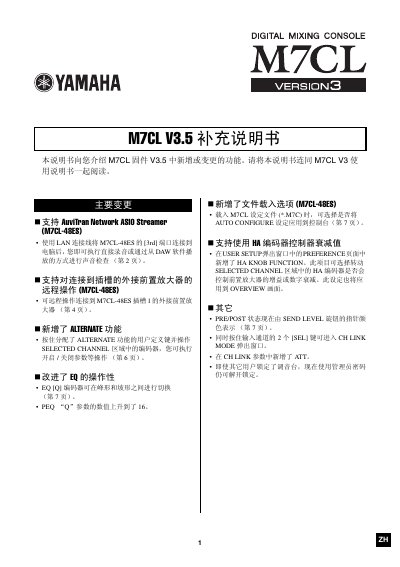

Yamaha M7CL Version 3 Digital Mixing Console Firmware Update Supplemental Manual

M7CL V3.5 Supplement Manual introduces the new or changed functions in M7CL firmware V3.5

Brand: Yamaha
Document type: User Manual
Language: Chinese
Pages: 8
File format: PDF
File size: 1.3 MB
Published: 11 June, 2012
Updated: 30 September, 2023
Model: M7CL
MD5 checksum: 1BF123F9A985FABDE240214B3A69629B
PDF: Yamaha M7CL Version 3 Digital Mixing Console Firmware Update Supplemental Manual PDF

About this manual

This document serves as a supplemental guide for the Yamaha M7CL digital mixing console, specifically covering updates introduced in firmware version 3.5. It details new functionalities such as support for AuviTran Network ASIO Streamer for direct recording and sound checks, remote control of external preamplifiers connected to Slot 1, and improved EQ operational modes. This manual is written in Chinese.

What's inside

AuviTran Network ASIO Streamer Support
Remote Control of External Preamplifiers
ALTERNATE Functionality
Improved EQ Operation
File Load Options
Visual Indicators for PRE/POST

Specifications

Supported Firmware Version	V3.5 or higher
Max AD8HR Units (Remote)	12 units
Max SB168-ES Units (Remote)	3 units

Frequently asked questions

What software is required for ASIO streaming?

You must install AuviTran Network ASIO Streamer V1.2.5 or higher and compatible ASIO DAW software.

How do I enable the ALTERNATE function?

Hold down a user-defined key assigned to the ALTERNATE function and operate an encoder in the SELECTED CHANNEL area.

Can I change EQ filter types with the Q knob?

Yes, you can switch between peak and slope shapes by turning the BEQ [Q] encoder when LOW or HIGH bands are selected.

Download PDF (1.3 MB)
