This document describes the features and characteristics of the Yamaha M3000A mixing console, including superb sound quality, VCA faders, scene memory, and GA diversity.

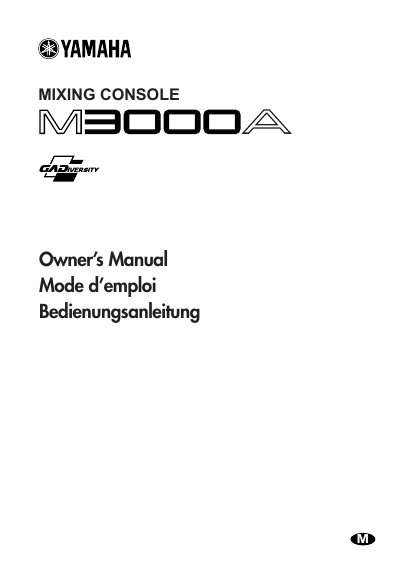

This document is the Owner's Manual for the Yamaha M3000A mixing console. It details the system features, including GA Diversity functionality that allows MIX buses to be switched between group or AUX modes, and a Scene Memory function capable of saving 128 scenes of channel and bus states.
The manual provides instructions on operating various sections of the control panel, such as input channels with their EQ and faders, VCA master fader sections, stereo output sections, and matrix outputs. It also covers rear panel connections, error messages, and technical specifications.
| Mono input channels | 26 dB pad, HPF, phase switch, four-band parametric EQ |
|---|---|
| Stereo output modules | 4 stereo and monaural |
| Mix outputs | 16 mix outputs |
| Matrix outputs | 8 matrix outputs |
The Scene Memory function saves the status of channels as one of 128 "scenes".
The mixer operating temperature is between 5°C and 35°C (41°F and 95°F).
