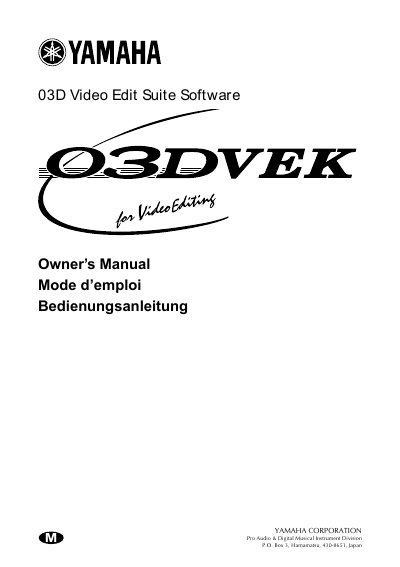

This manual introduces the features and installation methods of the 03D video editing software.
The Yamaha 03D Video Edit Suite Software transforms the 03D Digital Mixing Console into a full-feature digital audio mixer for video post-production. It supports the ESAM II editor protocol, allowing audio signals to be mixed and edited alongside video editing, enabling remote transition previews, and facilitating centralized data management between the console and the video editor. The software utilizes the console's standard 9-pin TO EDITOR port without requiring extra hardware.
| Protocol Support | ESAM II editor protocol |
|---|---|
| Input Delay | approximately six frames |
| Frame Accuracy | 1/4 frame accuracy |
| EQ Type | 4-band parametric EQ |
| Port Type | 9-pin TO EDITOR port |
| Crossfade Patterns | seven crossfade patterns |
| Curve Slopes | three curve slopes |
| Installation OS | Macintosh or Windows 95 |
No, the 03D does not require extra hardware such as boards and ports as a 9-pin TO EDITOR port comes as standard.
All automix data will be lost when the software is installed, so a backup using MIDI Bulk Dump is required before installation.
The software can be installed from a Macintosh or a PC running Windows 95 using a serial cable and specific connection software.
