NE34018 is an L to S band low noise amplifier with n-channel HJ-FET package. It features low noise figure and high associated gain.

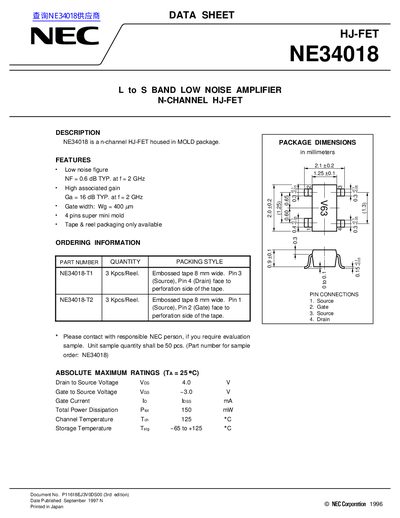

The NEC NE34018 is an N-channel HJ-FET housed in a 4-pin super mini mold package. It is designed as a Low Noise Amplifier (LNA) for the L to S band frequency range.
Key features include a typical noise figure of 0.6 dB and associated gain of 16 dB at 2 GHz. The device supports tape & reel packaging only, with specific ordering options available for different pin configurations.
| Noise Figure (Typical) at 2 GHz | 0.6 dB |
|---|---|
| Associated Gain (Typical) at 2 GHz | 16 dB |
| Gate Width | 400 um |
The typical noise figure is 0.6 dB at a frequency of 2 GHz.
No, tape & reel packaging is the only option available for this part.
