This product is designed to provide high optical performance for SDH STM-16/SONET OC-48. It uses an uncooled laser module with drivered by specific integrated circuit and has PD or APD preamp-module and integrated circuits for reshaping, retiming and regenerating optical signal. The product has the features of low cost, compact, low power.

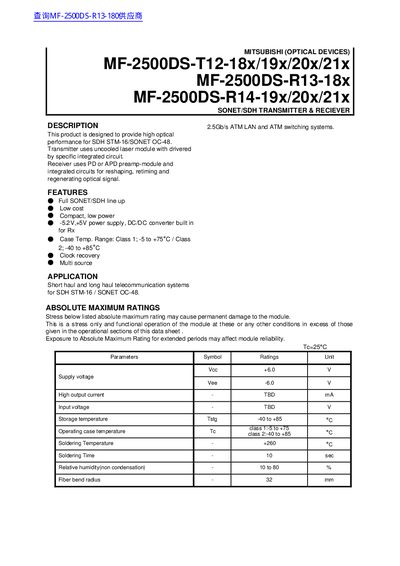

This document provides technical specifications for the Mitsubishi MF-2500DS series, which includes SONET/SDH Transmitters (MF-2500DS-T) and Receivers (MF-2500DS-R). The modules are designed for high optical performance in short haul and long haul telecommunication systems operating at 2.5Gb/s.
The datasheet details electrical and optical characteristics, absolute maximum ratings, pin allocations, ordering information, and general outline drawings. Transmitters utilize uncooled laser modules while receivers employ PD or APD preamp-modules with integrated circuits for signal processing.
| Data Rate | 2.5Gb/s |
|---|---|
| System Standard | SDH STM-16 / SONET OC-48 |
| Operating Case Temperature (Class 1) | -5 to +75°C |
| Supply Voltage (Transmitter) | +5V / -5.2V |
| Power Consumption (Receiver) | 1.3 W to 3 W |
The product operates in a case temperature range of -5 to +75°C.
The module must not be exposed to soldering temperatures for more than 10 seconds.
