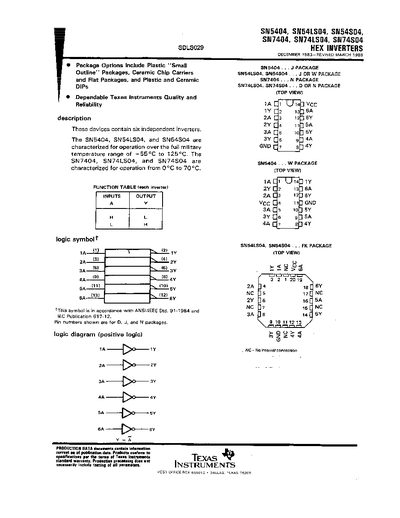

Texas Instruments SN5404, SN7404 Hex Inverters Datasheet

About this manual

This document provides technical specifications for the SN5404, SN54LS804, SN54S04, SN7404, SN74LS04, and SN74S04 Hex Inverters. It details the functional description, logic symbols, and pin configurations for various package options including J, W, N, and O types.

The datasheet outlines recommended operating conditions and electrical characteristics for both military (SN54xx) and commercial (SN74xx) temperature ranges. It includes specific data for supply voltage, input/output currents, and switching times under standard test conditions.

What's inside

• Description
• Function Table
• Logic Symbol
• Absolute Maximum Ratings
• Recommended Operating Conditions
• Electrical Characteristics
• Switching Characteristics
• Important Notice

Specifications

Frequently asked questions

What is the operating temperature range for SN5404?

The SN5404 is characterized for operation over the full military temperature range of -55°C to 125°C.

What is the operating temperature range for SN7404?

The SN7404 is characterized for operation from 0°C to 70°C.
