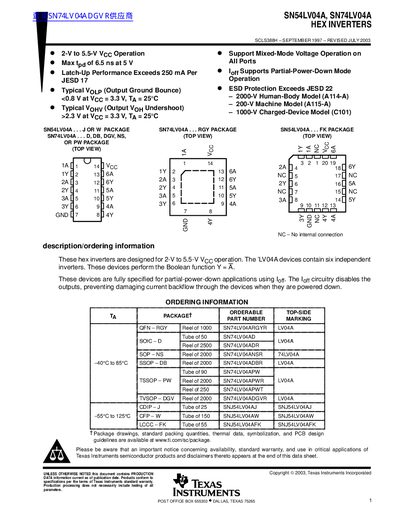

SN54LV04A, SN74LV04A HEX INVERTERS is a logic chip produced by Texas Instruments. The chip uses a 2-V to 5.5-V VCC power supply, has a maximum tpd of 6.5 ns, supports mixed-mode voltage operation, supports Ioff partial power-down mode operation, and supports 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A) and 1000-V Charged-Device Model (C101) ESD protection.
The document describes the SN54LV04A and SN74LV04A hex inverters, which are designed for operation with a supply voltage (Vcc) ranging from 2 V to 5.5 V. These devices contain six independent inverters that perform the Boolean function Y = A, supporting mixed-mode voltage operation and partial-power-down modes.
| Operating Temperature (SN54LV04A) | -55°C to 125°C |
|---|---|
| Number of Inverters | Six independent inverters |
| Logic Function | Y = A (Inversion) |
The devices are designed for operation with a Vcc ranging from 2 V to 5.5 V.
These devices are designed for operation with a supply voltage ranging from 2 V to 5.5 V.
The maximum propagation delay is 6.5 ns when operating at 5 V.
The recommended operating free-air temperature range is -40°C to 85°C.
