HWS314 is a GaAs MMIC SPDT switch with low power consumption, high frequency, and low noise

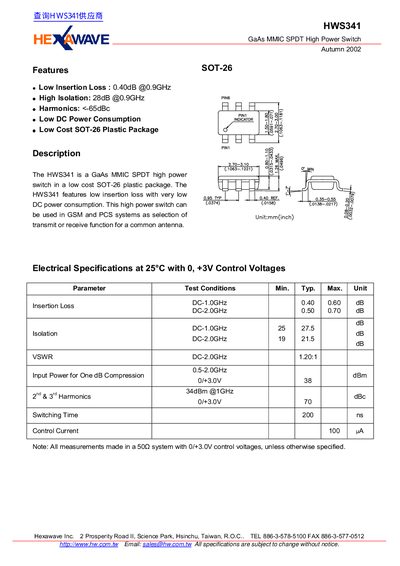

The document describes the HWS341, a Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) SPDT high power switch. It is housed in a low-cost SOT-26 plastic package and features low insertion loss with very low DC power consumption.
| Package Type | SOT-26 Plastic Package |
|---|---|
| Insertion Loss (DC-1.0GHz) | Max 0.70 dB |
| Isolation (DC-2.0GHz) | Typ 21.5 dB |
| Input Power for One dB Compression | 34dBm @1GHz |
| Switching Time | 200 ns |
| Control Current | 100 uA |
| Operating Temperature | -40°C to +85°C |
The absolute maximum rating for control voltage is +8V.
The device requires a control voltage between +3V and +5V to operate correctly.
