HWS301 is a GaAs MMIC SPDT switch product produced by HW company, which has the characteristics of low input capacitance, high output impedance, low noise and small size.

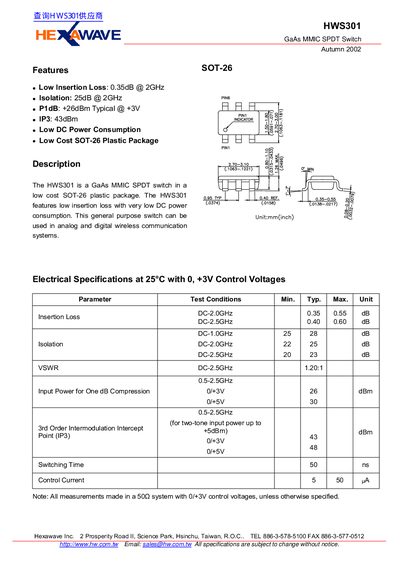

The HWS301 is a general-purpose GaAs MMIC single-pole double-throw (SPDT) switch designed for use in analog and digital wireless communication systems. It features low insertion loss and very low DC power consumption, packaged in a low-cost SOT-26 plastic package.
Key electrical specifications include an insertion loss of 0.35 dB at 2 GHz and isolation of 25 dB at the same frequency. The device supports control voltages of +3V or +5V and operates within a temperature range of -40°C to +85°C.
| Insertion Loss (DC-2.0GHz) | 0.35 dB Typ. |
|---|---|
| Isolation (DC-2.0GHz) | 25 dB Typ. |
| P1dB | +26 dBm Typical |
| Package Type | SOT-26 Plastic Package |
| Operating Temperature Range | -40°C to +85°C |
The HWS301 is a GaAs MMIC SPDT switch designed for use in analog and digital wireless communication systems.
The typical insertion loss is 0.35dB at 2GHz.
The maximum control voltage is +8V.
