HWS311 is a high performance GaAs MMIC SPDT switch featuring excellent linearity, high impedance, low noise and ultra-fast switching speed. It is ideal for use in various applications that require high speed and low power switching.

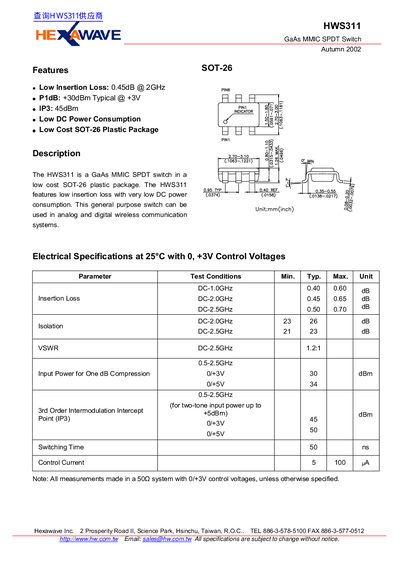

The HWS311 is a GaAs MMIC SPDT switch manufactured by Hexawave Inc. It is housed in a low-cost SOT-26 plastic package and is designed for use in analog and digital wireless communication systems. Key features include low insertion loss (0.45dB typical at 2GHz), high P1dB (+30dBm), and low DC power consumption.
| Insertion Loss (DC-2.0GHz) | 0.45 dB Typical |
|---|---|
| P1dB | +30dBm Typical |
| IP3 | 45dBm |
| Package Type | SOT-26 Plastic |
| Switching Time | 50 ns |
The typical insertion loss is 0.45dB at 2GHz.
The P1dB is +30dBm typical when controlled at +3V.
