The datasheet is for HWS305, including product model, package type, pin layout, working temperature range, supplier, etc.

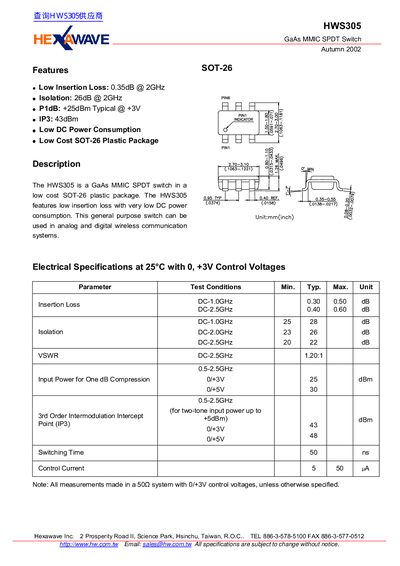

The document describes the HWS305, a general-purpose GaAs MMIC SPDT switch designed for analog and digital wireless communication systems. It features low insertion loss (0.35dB @ 2GHz) and very low DC power consumption in a low-cost SOT-26 plastic package.
The datasheet provides comprehensive electrical specifications including isolation, input power compression point (P1dB), third-order intermodulation intercept point (IP3), switching time, and control current. It also lists absolute maximum ratings for RF input power, control voltage, and operating temperature.
| Insertion Loss (DC-2GHz) | 0.35dB Typical @ 2GHz |
|---|---|
| Isolation (DC-2GHz) | 26dB Typical @ 2GHz |
| P1dB | +25dBm Typical @ +3V |
| IP3 | 43dBm |
| Package Type | SOT-26 Plastic Package |
| Switching Time | 50 ns |
| Control Current | 5 to 50 uA |
The device operates from -40°C to +85°C.
Yes, DC blocking capacitors Cs are required on all RF ports.
