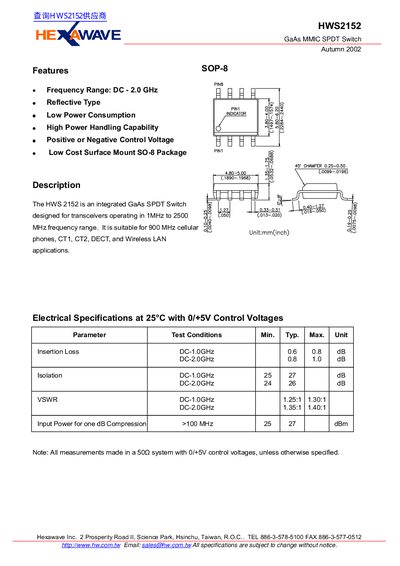

HWS2152 is a GaAs MMIC SPDT switch with features such as low power consumption, low noise, high switching speed and high isolation.
The HWS2152 is an integrated GaAs SPDT switch designed for transceivers operating in the 1MHz to 2500 MHz frequency range. It is suitable for applications such as 900 MHz cellular phones, CT1, CT2, DECT, and Wireless LAN. The device features an SOP-8 package and supports both positive and negative control voltages.
| Frequency Range | DC - 2.0 GHz |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Insertion Loss (DC-1.0GHz) | 0.6 dB (Min) |
| Isolation (DC-1.0GHz) | 25 dB (Min) |
| VSWR (DC-1.0GHz) | 1.25:1 (Typ) |
| Input Power for one dB Compression | 25 dBm (Min) |
The HWS2152 is designed for transceivers operating in the 1MHz to 2500 MHz frequency range.
The absolute maximum RF input power is 33dBm for frequencies above 100MHz.
The control voltage can be positive or negative, with a maximum of +8V.
