HWS306 is a GaAs MMIC SPDT switch from HW. It features low noise, high gain, high impedance, high bandwidth, low power consumption and low distortion. It is widely used in communication, radar and medical fields.

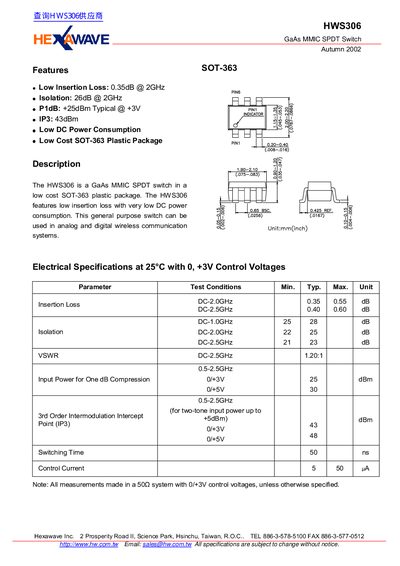

The HWS306 is a GaAs MMIC SPDT switch designed for use in analog and digital wireless communication systems. It features a low cost SOT-363 plastic package and offers low insertion loss with very low DC power consumption. Key electrical specifications include an insertion loss of 0.35 dB at 2 GHz and an isolation of 26 dB at 2 GHz.
| Package Type | SOT-363 Plastic Package |
|---|---|
| Input Power for One dB Compression | +25 dBm (Typ) |
| Switching Time | 50 ns |
| Control Current | 5 uA (Typ) |
The typical insertion loss is 0.35 dB at 2 GHz.
The typical isolation is 26 dB at 2 GHz.
The HWS306 uses a low cost SOT-363 plastic package.
