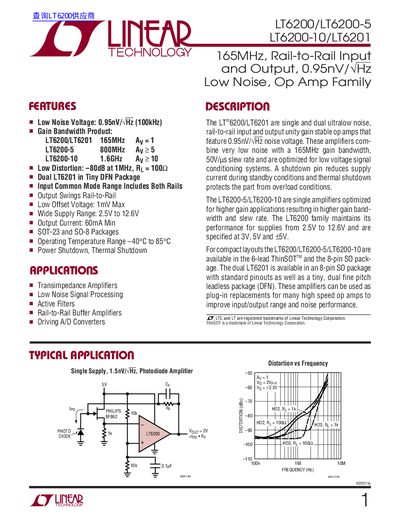

LT6200/LT6201 are single and dual ultralow noise, rail-to-rail input and output unity gain stable op amps that feature 0.95nV/√Hz noise voltage. These amplifiers combine very low noise with a 165MHz gain bandwidth, 50V/µs slew rate and are optimized for low voltage signal conditioning systems.
The LT6200/LT6201 are single and dual ultralow noise, rail-to-rail input and output unity gain stable op amps that feature 0.95nV/VHz noise voltage. These amplifiers combine very low noise with a 165MHz gain bandwidth, 50V/us slew rate and are optimized for low voltage signal conditioning systems.
The LT6200-5/LT6200-10 are single amplifiers optimized for higher gain applications resulting in higher gain bandwidth and slew rate. The LT6200 family maintains its performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and +5V.
| Input Noise Voltage Density | 0.95nV/VHz (100kHz) |
|---|---|
| Gain Bandwidth Product | 165MHz (LT6200) |
| Gain Bandwidth Product | 800MHz (LT6200-5) |
| Gain Bandwidth Product | 1.6GHz (LT6200-10) |
| Input Offset Voltage | 1mV Max |
| Supply Voltage Range | 2.5V to 12.6V |
| Output Current | 60mA Min |
| Operating Temperature Range | -40°C to 85°C |
| Input Common Mode Range | Includes Both Rails |
| Output Swing | Rail-to-Rail |
Applications include transimpedance amplifiers, low noise signal processing, active filters, rail-to-rail buffer amplifiers, and driving A/D converters.
The minimum supply voltage is 2.5V.
The family is available in SOT-23, SO-8, and ThinSOT packages.
