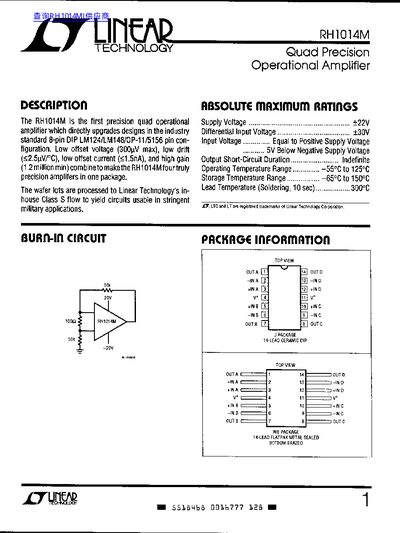

The RH1014M is a precision quad operational amplifier designed to upgrade designs using the industry-standard 8-pin DIP LM124/LM148/0P-11/5156 pin configuration. Key features include a low offset voltage of 300uV max, low drift of 2.5pV/°C, low offset current of less than 1.5nA, and high gain of 1.2 million minimum. The wafer lots are processed to Linear Technology's in-house Class S flow to yield circuits usable in stringent military applications.
The document provides comprehensive electrical specifications under various conditions, including sub-zero and sub-ambient temperatures, as well as radiation hardness data for doses up to 200KRAD(Si). It also includes package information for the 14-lead ceramic DIP and 14-lead flatpak metal sealed bottom brazed packages, along with a microcircuit part numbering system for military specifications.
| Input Offset Voltage | 300 uV max |
|---|---|
| Offset Voltage Drift | 2.5 pV/°C |
| Input Offset Current | < 1.5 nA |
| Large-Signal Voltage Gain | 1.2 million min |
| Operating Temperature Range | -55°C to 125°C |
| Supply Current Per Amplifier | 0.55 mA |
It uses the industry-standard 8-pin DIP LM124/LM148/0P-11/5156 pin configuration.
Yes, the wafer lots are processed to Linear Technology's in-house Class S flow.
