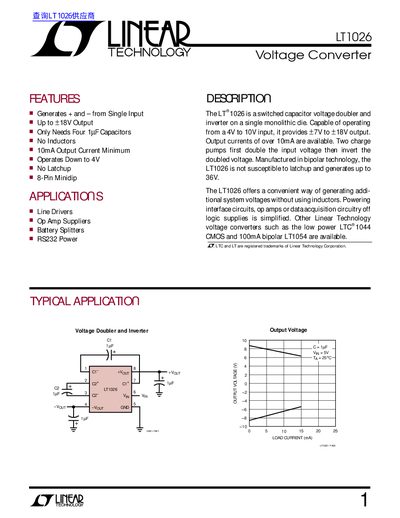

The LT1026 is a switched capacitor voltage doubler and inverter on a single monolithic die from Linear Technology Corporation. It can operate from a 4V to 10V input and provides ±7V to ±18V output. Output currents of over 10mA are available. Two charge pumps first double the input voltage then invert the doubled voltage. The LT1026 offers a convenient way of generating additional system voltages without using inductors. Powering interface circuits, op amps or data acquisition circuitry off logic supplies is simplified.
The Linear Technology LT1026 is an 8-pin monolithic integrated circuit designed to generate both positive and negative output voltages from a single input supply. It functions as a switched capacitor voltage doubler followed by an inverter, capable of operating with inputs between 4V and 10V to provide outputs up to ±18V.
| Operating Temperature Range (LT1026C) | -40°C to 85°C |
|---|---|
| Operating Temperature Range (LT1026M) | -55°C to 125°C |
| Supply Current (Vin=4V, IL=0mA) | 7 to 12.5 mA |
| Supply Current (Vin=10V, IL=0mA) | 15 to 30 mA |
No, it is a switched capacitor voltage doubler and inverter that does not use inductors.
The device can operate from a 4V to 10V input.
