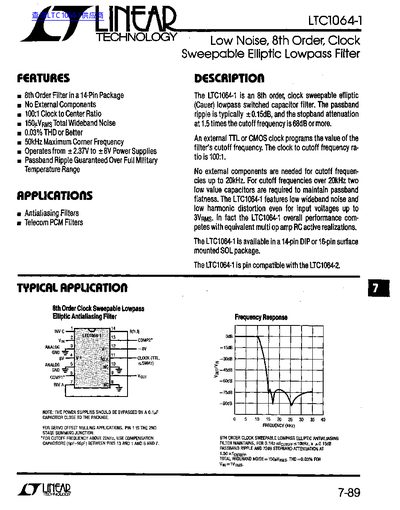

The LTC1064-1 is an 8th order, clock sweepable elliptic (Cauer) lowpass switched capacitor filter designed for applications such as antialiasing filters and telecom PCM filters. It features a passband ripple of typically +0.15dB and stopband attenuation of 68dB or more at 1.5 times the cutoff frequency. The device operates from +2.37V to +8V power supplies and requires no external components for cutoff frequencies up to 20kHz.
| Order | 8th Order |
|---|---|
| Filter Type | Elliptic Lowpass |
| Stopband Attenuation | 68dB or more |
| Clock to Cutoff Ratio | 100:1 |
| Total Wideband Noise | 150uVrms |
| THD | 0.03% or better |
| Maximum Corner Frequency | 50kHz |
| Power Supply Range | +2.37V to +8V |
| Maximum Clock Frequency | 5MHz |
No external components are needed for cutoff frequencies up to 20kHz.
The clock to cutoff frequency ratio is 100:1.
The LTC1064-1 is available in a 14-pin DIP or 16-pin surface mounted SOL package.
