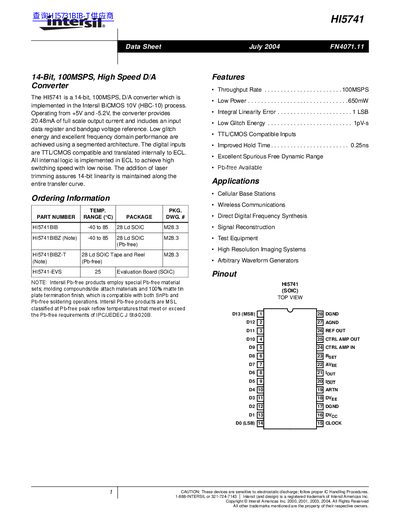

HI5741 14-bit, 100MSPS, High Speed D/A Converter
The HI5741 is a 14-bit digital-to-analog converter implemented in the Intersil BICMOS process. Operating from +5V and -5.2V supplies, it provides 20.48mA of full-scale output current and includes an internal data register and bandgap voltage reference. The device utilizes a segmented architecture to achieve low glitch energy and high switching speed with low noise.
| Resolution | 14-bit |
|---|---|
| Throughput Rate | 100 MSPS |
| Full Scale Output Current | 20.48 mA |
| Integral Linearity Error (Ta = 25°C) | -1.0 to +1.5 LSB |
| Low Glitch Energy (Peak) | 4 pV-s |
| Output Voltage Settling Time | 11 ns |
| Power Dissipation | 650 mW |
The device operates from -40°C to +85°C.
Yes, the digital inputs are TTL/CMOS compatible and translated internally to ECL.
The typical power dissipation is 650 mW.
