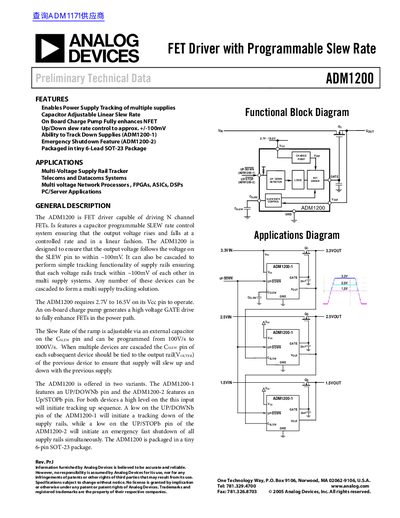

The ADM1200 is an NFET driver with a programmable slew rate control system that ensures that the output voltage rises and falls at a controlled rate and in a linear fashion.
The ADM1200 is an N-channel FET driver designed to enable power supply tracking of multiple supplies with a capacitor-adjustable linear slew rate. It features an on-board charge pump that fully enhances NFETs, allowing the output voltage to follow the SLEW pin within approximately 100mV. The device can be cascaded to form multi-supply tracking solutions for various applications including network processors and PC/server systems.
| Operating Voltage Range (Vcc) | 2.7 V to 16.5 V |
|---|---|
| Slew Rate | 100 V/s to 1000 V/s |
| Tracking Delta | ~100 mV |
| Operating Temperature Range | -40°C to +105°C |
| Package Type | 6-Lead SOT-23 |
The ADM1200 is a FET driver capable of driving N channel FETs with a capacitor programmable slew rate control system.
Any number of these devices can be cascaded to form a multi supply tracking solution, ensuring each voltage rail tracks within ~100mV of each other.
The ADM1200-1 features an UP/DOWNb pin for tracking down, while the ADM1200-2 features an Up/STOPb pin for emergency fast shutdown.
