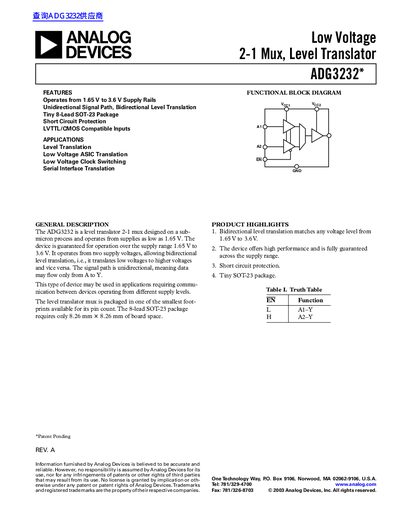

The ADG3232 is a low voltage 2-1 mux designed on a sub-micron process and operates from supplies as low as 1.65 V. It is guaranteed for operation over the supply range 1.65 V to 3.6 V. This type of device may be used for level translation, low voltage ASIC translation, low voltage clock switching, serial interface translation, etc.
The ADG3232 is a bidirectional level translator designed as a 2-to-1 multiplexer that operates on supplies as low as 1.65 V up to 3.6 V. It features an unidirectional signal path allowing data flow from inputs A1 or A2 to output Y, while supporting bidirectional voltage translation between different logic levels.
The device is available in a tiny 8-lead SOT-23 package and includes short circuit protection. It supports LVTTL/CMOS compatible inputs and is suitable for applications such as low voltage ASIC translation, clock switching, and serial interface translation.
| Supply Voltage Range | 1.65 V to 3.6 V |
|---|---|
| Package Type | 8-Lead SOT-23 |
| Operating Temperature Range (Industrial) | -40°C to +85°C |
| Short Circuit Protection | Yes |
The device operates from supplies as low as 1.65 V.
No, the signal path is unidirectional, meaning data may flow only from A to Y.
