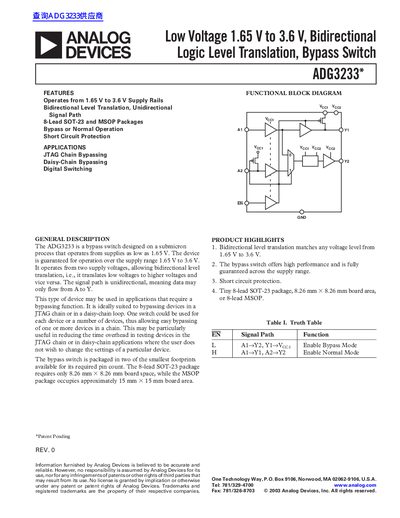

The ADG3233 is a low voltage 1.65V to 3.6V bidirectional logic level translation bypass switch, featuring bidirectional level translation, bypass or normal operation, and short circuit protection.
The ADG3233 is a bypass switch designed on a submicron process that operates from supply voltages as low as 1.65 V. It is guaranteed for operation over the supply range of 1.65 V to 3.6 V and utilizes two supply voltages to allow bidirectional level translation, translating low voltages to higher voltages and vice versa. The signal path is unidirectional, meaning data flows only from A to Y.
| Supply Voltage Range | 1.65 V to 3.6 V |
|---|---|
| Package Types | 8-Lead SOT-23 and MSOP |
| Operating Temperature Range | -40°C to +85 °C |
| Quiescent Power Supply Current | 2 µA |
| Propagation Delay (Normal Mode) | 3.5 ns (Typ) |
It is a bypass switch designed for bidirectional level translation and unidirectional signal path operation.
Yes, it is ideally suited to bypassing devices in a JTAG chain or in a daisy-chain loop.
The device is available in 8-lead SOT-23 and 8-lead MSOP packages.
