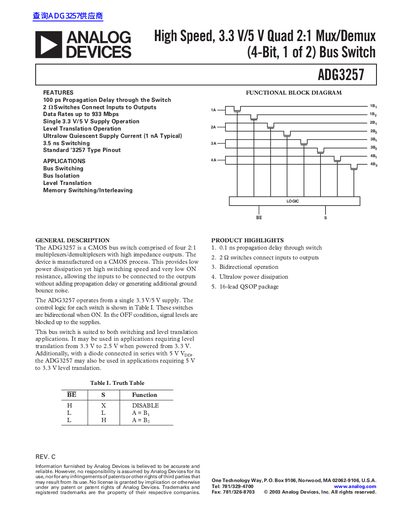

The ADG3257 is a CMOS bus switch comprised of four 2:1 multiplexers/demultiplexers with high performance. The switch has 100ps propagation delay, 2Ω switches connect inputs to outputs, supports single 3.3V/5V power supply, supports bidirectional operation, has ultra-low power consumption, and uses a 16-lead QSOP package.
The ADG3257 is a CMOS bus switch comprised of four 2:1 multiplexers/demultiplexers with high impedance outputs. Manufactured on a CMOS process, the device offers low power dissipation, high switching speed, and very low ON resistance. It operates from a single 3.3 V or 5 V supply and supports level translation applications.
Key features include a propagation delay of 0.1 ns, data rates up to 933 Mbps, and bidirectional operation. The device is available in a 16-lead QSOP package and is suitable for bus switching, isolation, and memory interleaving applications.
| Package Type | 16-lead QSOP |
|---|
It supports single 3.3 V or 5 V supply operation.
Yes, it is suited for level translation applications, such as from 3.3 V to 2.5 V.
