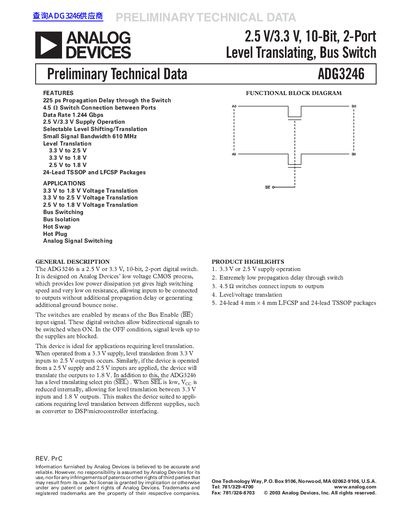

ADG3246 2.5 V/3.3 V, 10-Bit, 2-Port Level Translating, Bus Switch is a digital switch with 2.5 V/3.3 V supply voltage, 10-bit, 2-port, selectable level shifting/translation function, 610 MHz small signal bandwidth, 24-lead TSSOP and LFCSP packages.
The ADG3246 is a 2.5 V or 3.3 V, 10-bit, 2-port digital switch designed on Analog Devices' low voltage CMOS process. It features extremely low propagation delay and very low on resistance, allowing inputs to be connected to outputs without additional ground bounce noise.
| Propagation Delay through the Switch | 225 ps |
|---|---|
| Data Rate | 1.244 Gbps |
| Supply Operation | 2.5 V/3.3 V |
| Small Signal Bandwidth | 610 MHz |
| Operating Temperature Range (Industrial B Version) | -40 °C to +85 °C |
The maximum data rate is 1.244 Gbps.
The device supports operation from a 2.5 V or 3.3 V power supply.
The device supports a maximum data rate of 1.244 Gbps.
The switch is offered in 24-lead TSSOP and LFCSP packages.
