The document describes the features and characteristics of the SN54ALVTH16373 and SN74ALVTH16373 products, including the use of advanced BiCMOS technology, operating voltage, power dissipation, output states, and drive capability.

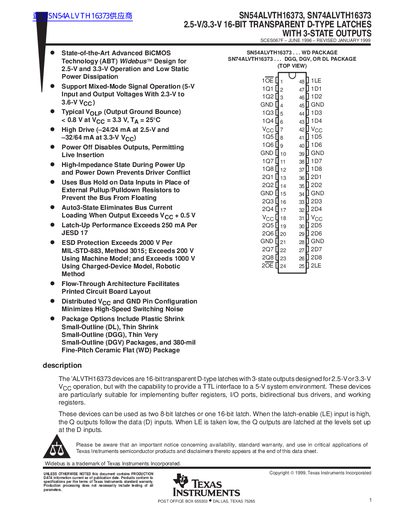

The SN54ALVTH16373 and SN74ALVTH16373 devices are 16-bit transparent D-type latches with 3-state outputs designed for 2.5-V or 3.3-V VCC operation. They are suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. The devices can be used as two 8-bit latches or one 16-bit latch.
| Operating Temperature (SN54ALVTH16373) | -55°C to 125°C |
|---|
A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state or a high-impedance state.
The device is in the high-impedance state during power up or power down.
