SN74276 is a series of logic circuits produced by Texas Instruments

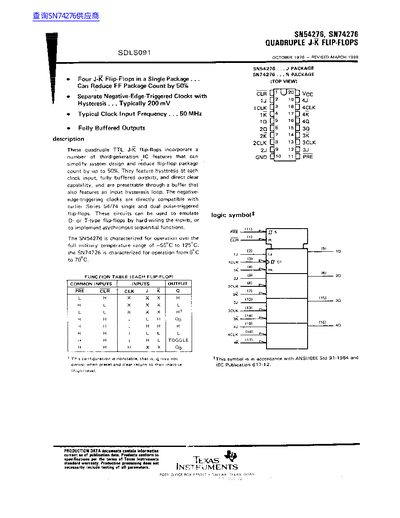

The document provides technical specifications for the SN54276 (military temperature range) and SN74276 (commercial temperature range) integrated circuits. These devices feature four negative-edge-triggered J-K flip-flops in a single package, offering fully buffered outputs and direct clear capability.
| Flip-Flop Type | Quadruple J-K Flip-Flops |
|---|---|
| Clock Triggering | Negative-Edge-Triggered |
| Maximum Clock Frequency | 50 MHz |
Yes, they feature separate negative-edge-triggered clocks with hysteresis.
