This datasheet provides detailed information on SN54AHC132 and SN74AHC132 quad positive-NAND gates, including operating voltage range, input transition speed, noise immunity, pin compatibility, latch-up performance, and ESD protection.

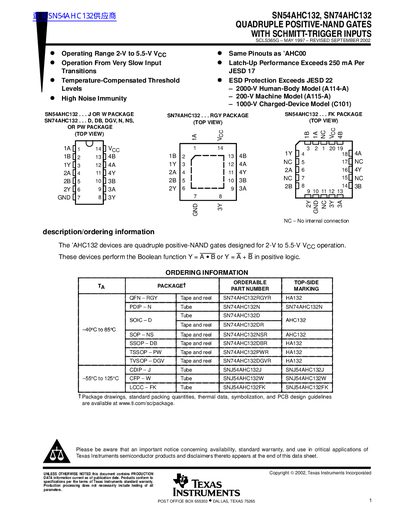

This document is a technical datasheet for the SN54AHC132 and SN74AHC132 integrated circuits. These devices are quadruple positive-NAND gates designed specifically for 2-V to 5.5-V Vcc operation, featuring Schmitt-trigger inputs that provide temperature-compensated thresholds and clean jitter-free output signals even from very slow input transitions.
The datasheet provides comprehensive electrical specifications including absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics over the recommended free-air temperature range. It also details switching characteristics for both 3.3V and 5V supply voltages, noise characteristics, and includes diagrams for parameter measurement information.
| Supply Voltage Range | 2 V to 5.5 V |
|---|---|
| Number of Gates | Quadruple (4) |
| Logic Function | Positive-NAND with Schmitt-Trigger Inputs |
| Operating Temperature Range (SN54AHC132) | -55°C to 125°C |
The devices are designed for 2-V to 5.5-V Vcc operation.
Yes, they feature Schmitt-trigger inputs which provide temperature-compensated thresholds and clean output signals from slow input ramps.
They perform the Boolean function Y = A AND B or Y = A+B in positive logic.
