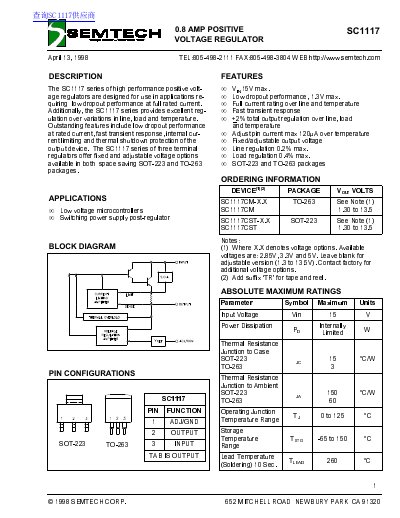

The document describes the SC1117 series of three-terminal positive voltage regulators designed for low dropout performance. These devices offer fixed and adjustable output voltages available in SOT-223 and TO-263 packages.
Key features include internal current limiting, thermal shutdown protection, and fast transient response. The datasheet provides absolute maximum ratings, electrical characteristics tables, typical application circuits for both fixed and adjustable configurations, and mechanical outlines.
| Input Voltage (Max) | 15 V |
|---|---|
| Output Current (Max) | 0.8 A |
| Dropout Voltage (Max) | 1.3 V |
| Line Regulation (Max) | 0.2 % |
| Load Regulation (Max) | 0.4 % |
| Operating Temperature Range | 0 to 125 °C |
The available fixed voltage options are 2.85V, 3.3V, and 5V.
The device is offered in SOT-223 and TO-263 packages.
Yes, it includes internal current limiting and thermal shutdown protection of the output device.
