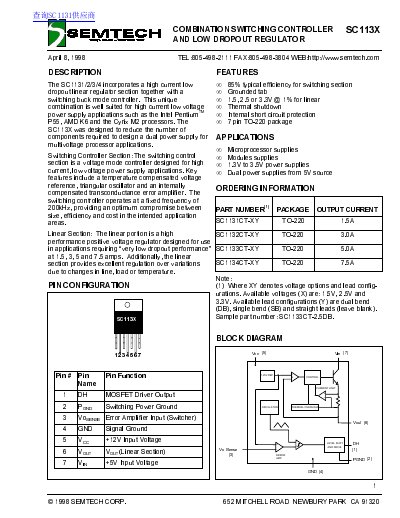

The Semtech $C113X integrates a high current low dropout linear regulator section with a switching buck mode controller. This unique design is intended to reduce component count for dual power supply applications in multivoltage processor environments, such as those used by Intel Pentium M and AMD K6 processors.
The device features a voltage mode switching controller operating at a fixed frequency of 200kHz and a linear regulator section capable of providing 1.5A to 7.5A depending on the specific model variant. Key characteristics include an internally compensated error amplifier, thermal shutdown protection, and internal short circuit protection.
| Switching Controller Frequency | 200kHz |
|---|---|
| Output Current Range | 1.5A to 7.5A |
| Package Type | TO-220 |
| Thermal Shutdown Protection | Yes |
The switching controller operates at a fixed frequency of 200kHz.
The switching section has an 85% typical efficiency.
