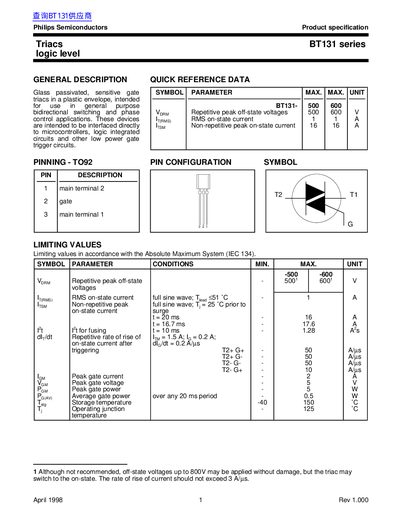

This document is the product specification of Philips Semiconductors Triacs BT131 series, including the maximum repetitive peak off-state voltage, RMS on-state current, non-repetitive peak on-state current and other information.
This document is a product specification datasheet for the BT131 series of glass passivated, sensitive gate triacs in a plastic envelope. These devices are designed for general purpose bidirectional switching and phase control applications, intended to be interfaced directly with microcontrollers and logic integrated circuits.
The datasheet provides comprehensive technical data including quick reference values, limiting values according to IEC 134, static and dynamic characteristics, thermal resistances, and application curves. It also includes mechanical dimensions for the TO92 package and definitions regarding data sheet status.
| Repetitive peak off-state voltage | 500 V (BT131) / 600 V (Vorm) |
|---|---|
| RMS on-state current | 1 A |
| Non-repetitive peak on-state current | 16 A (BT131) / 17.6 A (Vorm) |
| Storage temperature | -40 to +150 °C |
Yes, they are intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
The device comes in a plastic envelope with TO92 pin configuration.
