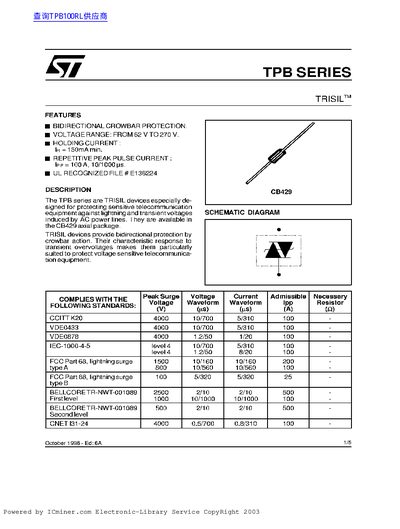

The TPB series are TRISIL devices specifically designed to protect sensitive telecommunication equipment against lightning and transient voltages induced by AC power lines. These devices provide bidirectional protection by crowbar action and are available in the CB429 axial package. They are UL recognized and suitable for protecting voltage-sensitive equipment.
| Voltage Range | 62 V to 270 V |
|---|---|
| Holding Current | 150mA min. |
| Peak Pulse Current (10/1000 us) | 100 A |
| Power Dissipation | 5 W |
| Peak Pulse Current (8/20 us) | 150 A |
| Peak Pulse Current (2/10 us) | 500 A |
| Non Repetitive Surge Peak On-State Current | 50 A |
| It Value for Fusing | 25 A |
| Critical Rate of Rise of Off-State Voltage | 5 kV/us |
| Storage Temperature Range | - 55 to+ 150 °C |
| Maximum Junction Temperature | 150 °C |
| Maximum Lead Temperature for Soldering | 230 °C |
| Junction to Leads Thermal Resistance | 20 °C/W |
| Junction to Ambient Thermal Resistance | 75 °C/W |
They provide bidirectional protection by crowbar action.
The holding current is a minimum of 150mA.
The peak repetitive pulse current is 100A for a 10/1000 us waveform.
