This document is about the TSSOP20 package and packing information. It includes detailed information about the dimensions, weight, tape and reel mechanical data of the package.

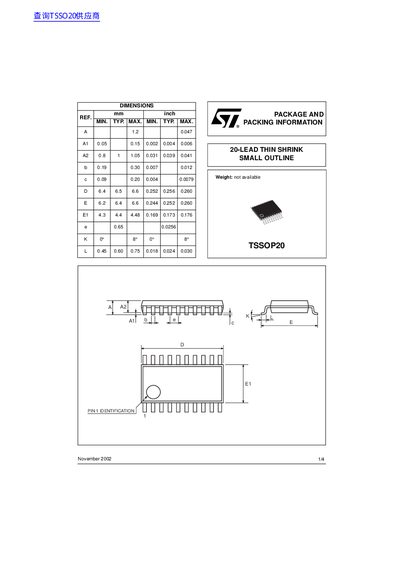

This document provides dimensional information for the 20-lead Thin Shrink Small Outline (TSSOP) package. It includes detailed drawings with minimum, typical, and maximum values in both millimeters and inches.
The datasheet also specifies the mechanical data for tape and reel shipment, covering specifications for the top cover, reel hub, and slot dimensions to ensure proper handling during manufacturing.
The base quantity for shipment is 2500 pieces.
The access hole at the slot location must be a minimum of 40mm.
The maximum thickness for the tape is 22.4mm.
