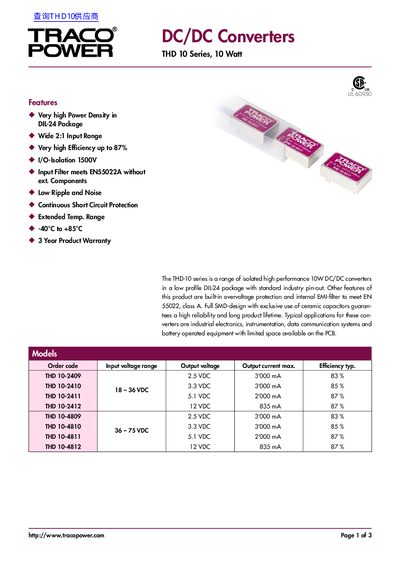

The THD-10 series is a range of isolated high performance 10W DC/DC converters in a low profile DIL-24 package with standard industry pin-out. Other features of this product are built-in overvoltage protection and internal EMI filter to meet EN 55022, class A. Full SMD-design with exclusive use of ceramic capacitors guarantees high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems, and battery operated equipment with limited space available on the PCB.
The THD 10 series is a range of isolated high performance I/O DC/DC converters available in a low profile DIL-24 package with standard industry pin-out. These converters are designed for applications requiring very high power density, such as industrial electronics and battery-operated equipment.
Key features include efficiencies up to 87%, input isolation of 1500V, and an extended temperature range from -40°C to +85°C. The series offers various models with different input voltage ranges (2.5VDC or 36-75VDC) and output voltages (2.5VDC, 3.3VDC, 5.1VDC, or 12VDC).
| Power Rating | 10 Watt |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Typical Efficiency | up to 87% |
| Package Type | DIL-24 |
| Switching Frequency | 400 kHz typ. |
The converters operate in a range from -40°C to +85°C.
The converters operate within a temperature range of -40°C to +85°C.
The input-to-output isolation voltage is rated at 1500V.
Each unit weighs 17.3 grams.
