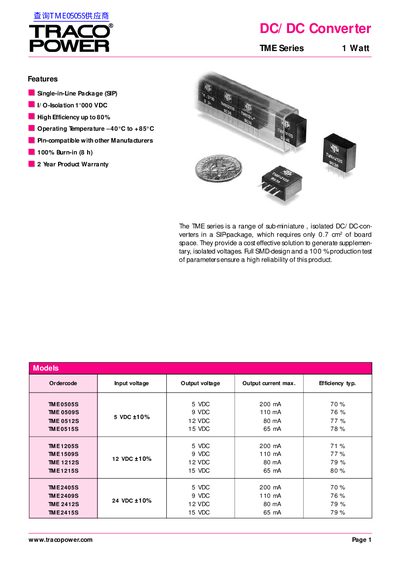

TME series is a range of sub-miniature , isolated DC/DC-con- verters in a SIP-package, which requires only 0.7 cm2 of board space. They provide a cost effective solution to generate supplemen- tary, isolated voltages.
The TME series is a range of sub‑miniature, isolated DC/DC converters offered in a SIP package that occupies only 0.7 cm² of board space. They are pin‑compatible with other manufacturers, feature 100 % burn‑in testing and a two‑year warranty, making them a reliable solution for generating isolated supplementary voltages.
Key specifications include input voltages of 5 V, 12 V or 24 V, output voltages from 5 V to 24 V, output currents up to 200 mA, typical efficiencies up to 80 %, isolation voltage of 1000 VDC, operating temperature from –40 °C to +85 °C, and a switching frequency of 90 kHz. The converters are housed in a non‑conductive black plastic case (UL94‑V0) with a weight of 1.3 g (5 V/12 V models) or 1.7 g (24 V models).
| Isolation voltage | 1000 VDC |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
| Switching frequency | 90 kHz typ. |
| Package weight (5 V/12 V models) | 1.3 g (0.05 oz) |
The converters have an isolation voltage of 1000 VDC between input and output.
They operate from –40 °C up to +85 °C.
The 5 V and 12 V models weigh about 1.3 g (0.05 oz).
