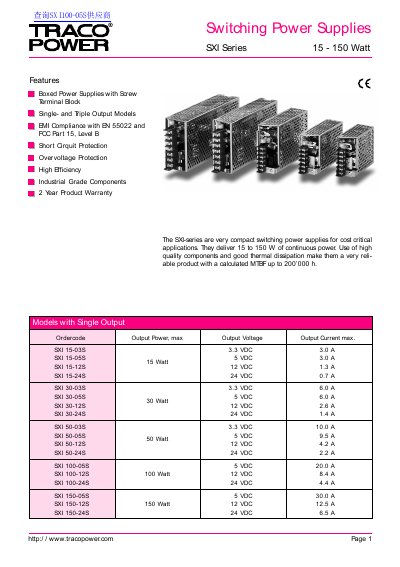

The SXI series are very compact switching power supplies for cost critical applications. They deliver 15 to 150 W of continuous power. Use of high quality components and good thermal dissipation make them a very reliable product with a calculated MTBF up to 200’000 h.
The SXI series from Traco Power are compact switching power supplies designed for cost‑critical applications. They deliver continuous output power from 15 W to 150 W and feature high‑efficiency operation, industrial‑grade components and a calculated MTBF of up to 200 000 h.
The document provides detailed electrical specifications, mechanical dimensions, environmental limits and protection features such as short‑circuit and over‑voltage protection. It also lists the available single‑output and multi‑output models with their respective voltage and current ratings. This manual is written in Chinese.
| Output Power Range | 15 W to 150 W |
|---|---|
| Input Voltage Range | 170 VAC – 264 VAC |
| Efficiency | 70 % – 80 % |
| MTBF | > 200 000 h |
| Isolation Voltage (Input/Output) | 3000 VAC |
| Operating Temperature Range | -10 °C to +60 °C |
The SXI series supplies continuous output power from 15 W up to 150 W.
It operates from an input voltage of 170 VAC to 264 VAC.
Efficiency ranges between 70 % and 80 % depending on the model.
They have a calculated mean time between failures of over 200 000 hours.
