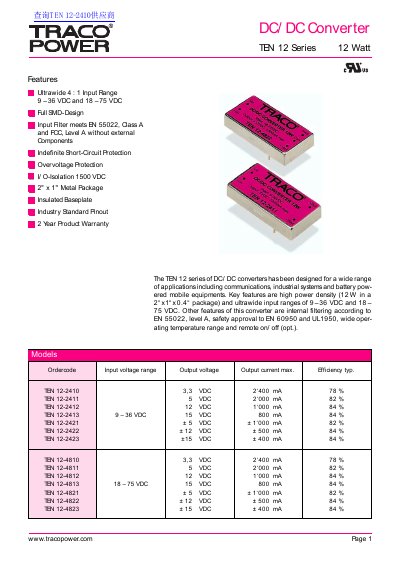

The TEN 12 series of DC/DC converters has been designed for a wide range of applications including communications, industrial systems and battery pow- ered mobile equipments. Key features are high power density (12W in a 2“x1“x 0.4“ package) and ultrawide input ranges of 9– 36 VDC and 18 – 75 VDC. Other features of this converter are internal filtering according to EN 55022, level A, safety approval to EN 60950 and UL 1950, wide oper- ating temperature range and remote on/off (opt.).
The TEN 12 series of DC/DC converters is designed for communications, industrial systems and battery‑powered mobile equipment. It offers a compact 2"×1"×0.4" SMD package and an ultrawide input range of 9–36 VDC (24 V models) or 18–75 VDC (48 V models).
Key features include internal EMI filtering, over‑current and over‑voltage protection, 1500 VDC I/O isolation, optional remote on/off control, and compliance with EN 55022 Class A, FCC Level A, UL 1950 and EN 60950 safety standards. Typical efficiencies range from 78 % to 84 % depending on the output voltage.
| Input voltage range | 9–36 VDC (24 V models) / 18–75 VDC (48 V models) |
|---|---|
| Output voltage options | 3.3 V, 5 V, 12 V, ±5 V, ±12 V, ±15 V |
| Maximum output current | 2.4 A (3.3 V), 2.0 A (5 V), 1.0 A (12 V) |
| Isolation voltage | 1500 VDC |
| Switching frequency | 400 kHz (fixed) |
| Package dimensions | 15.2 × 10.2 × 2.5 mm |
| Weight | 30 g (1.2 oz) |
The TEN 12 series accepts 9–36 VDC for 24 V models and 18–75 VDC for 48 V models.
It complies with UL 1950, EN 60950, IEC 60950, EN 55022 Class A and FCC Part 15 Level A.
