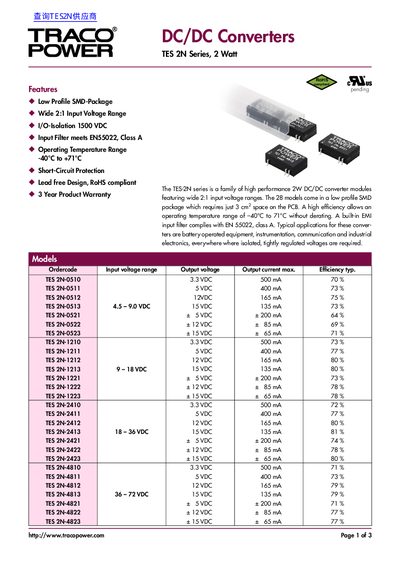

The TES 2N series is a family of high performance 2W DC/DC converter modules featuring wide 2:1 input voltage ranges.
The TES 2N series is a family of high‑performance 2 W DC/DC converter modules offered in a low‑profile SMD package. They feature a wide 2:1 input voltage range, 1500 VDC isolation, and built‑in EMI input filtering that meets EN‑55022 Class A. Typical applications include battery‑operated equipment, instrumentation, communication and industrial electronics where isolated, tightly regulated voltages are required.
Key specifications include an operating temperature range of –40 °C to +71 °C, short‑circuit protection with indefinite automatic recovery, and efficiencies up to 81 % depending on the model. The modules weigh only 3.8 g, switch at 300 kHz, and provide output voltage set accuracy of ±2 % with ripple limited to 50 mVpk‑pk.
| Input voltage range | Wide 2:1 |
|---|---|
| Isolation voltage | 1500 VDC |
| Operating temperature range | -40 °C to +71 °C |
| Weight | 3.8 g |
| Switching frequency | 300 kHz |
| Output voltage set accuracy | ±2 % |
| Minimum load | 25 % of rated max current |
The converters provide 1500 VDC isolation between input and output.
They operate from –40 °C up to +71 °C without derating.
Yes, it includes indefinite short‑circuit protection with automatic recovery.
