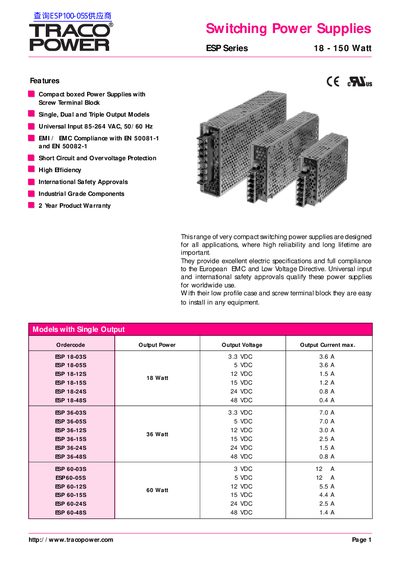

This range of very compact switching power supplies are designed for all applications, where high reliability and long lifetime are important. They provide excellent electric specifications and full compliance to the European EMC and Low Voltage Directive. Universal input and international safety approvals qualify these power supplies for worldwide use. With their low profile case and screw terminal block they are easy to install in any equipment.
The ESP Series from Traco Power offers compact, high‑efficiency switching power supplies ranging from 18 W to 150 W. All models feature universal 85‑264 VAC input, screw‑terminal blocks, and meet international safety and EMC standards.
The document lists single‑output and multi‑output configurations, detailed electrical specifications, mechanical dimensions, and compliance information such as CE, UL1950 and IEC 60950 approvals.
| Input voltage range | 85‑264 VAC |
|---|---|
| Efficiency | 70‑87 % |
| Isolation voltage (Input‑Output) | 3000 VAC |
| Output current limitation | 105‑120 % I_nom |
The ESP series operates from 85 VAC to 264 VAC.
The series is approved to CE, UL1950, IEC 60950 and EN 60950 standards.
The series provides up to 150 W of output power.
