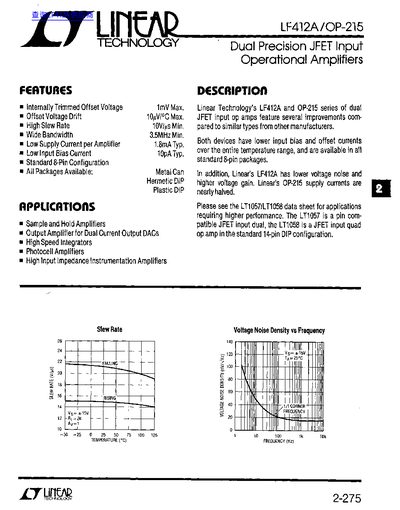

Linear Technology LF412A/OP-215 Dual Precision JFET Input Operational Amplifiers Datasheet

About this manual

This document provides technical specifications for the LF412A and OP-215 series of dual JFET input operational amplifiers manufactured by Linear Technology. The devices feature improvements such as lower input bias and offset currents over the entire temperature range compared to similar types from other manufacturers.

The datasheet details absolute maximum ratings, electrical characteristics for various grades (A, M, C/G, E, G), and typical performance characteristics including frequency response and rejection ratios. It also includes package descriptions and dimensions for Metal Can and Plastic DIP configurations.

What's inside

• Features
• Applications
• Description
• Absolute Maximum Ratings
• Electrical Characteristics
• Typical Performance Characteristics
• Package Descriptions

Specifications

Frequently asked questions

What is the maximum supply voltage for the LF412A grade?

The absolute maximum rating for the LF412A is +20V.

What are the operating temperature limits for the LF412AMIM and OP-215A/C grades?

These devices operate from -55°C to 125°C.

What is the typical supply current per amplifier for these op amps?

The typical supply current is 1.8mA per amplifier.
